Vision Shuttle

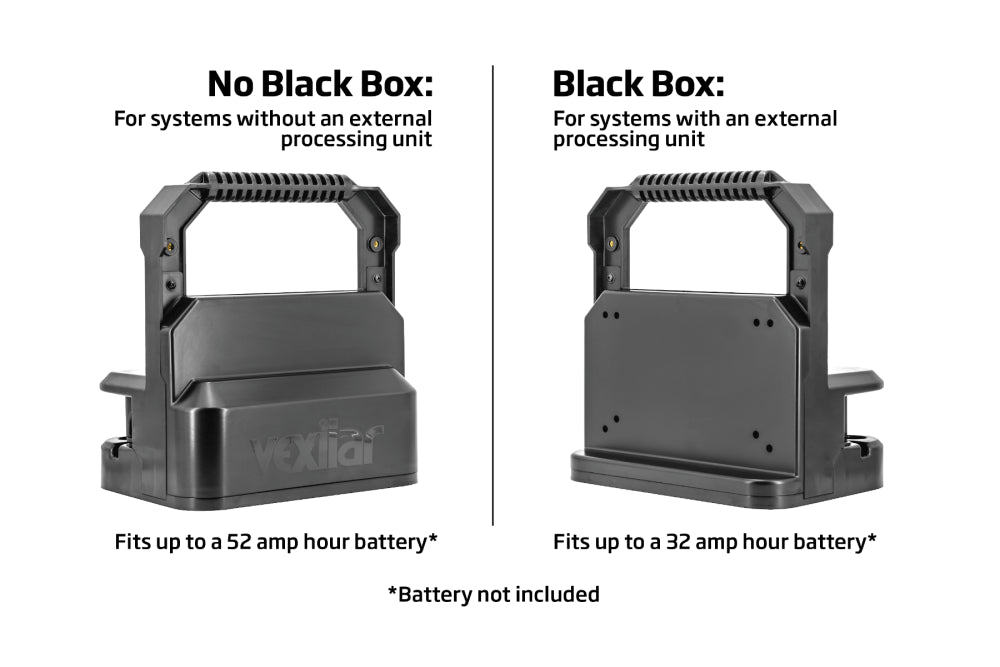

Take your live imaging setup to the next level with the Vision Shuttle. This rugged, fully assembled sonar shuttle is engineered for maximum compatibility and convenience. Designed with two interchangeable rear panels, it seamlessly supports both black-box and non–black-box sonar systems. The impact-resistant, injection-molded ABS frame keeps the internal components protected while integrated feet elevate the unit off the ice for stability.

An enclosed, easily accessible battery compartment fits up to a 52Ah battery (32Ah with brain box), complete with hook-and-loop straps and adjustable positioning to perfectly balance your system. Terminal blocks simplify installing sonar units and accessories, while the standard SAE charging port and quick-connect plug make powering Vexilar accessories effortless.

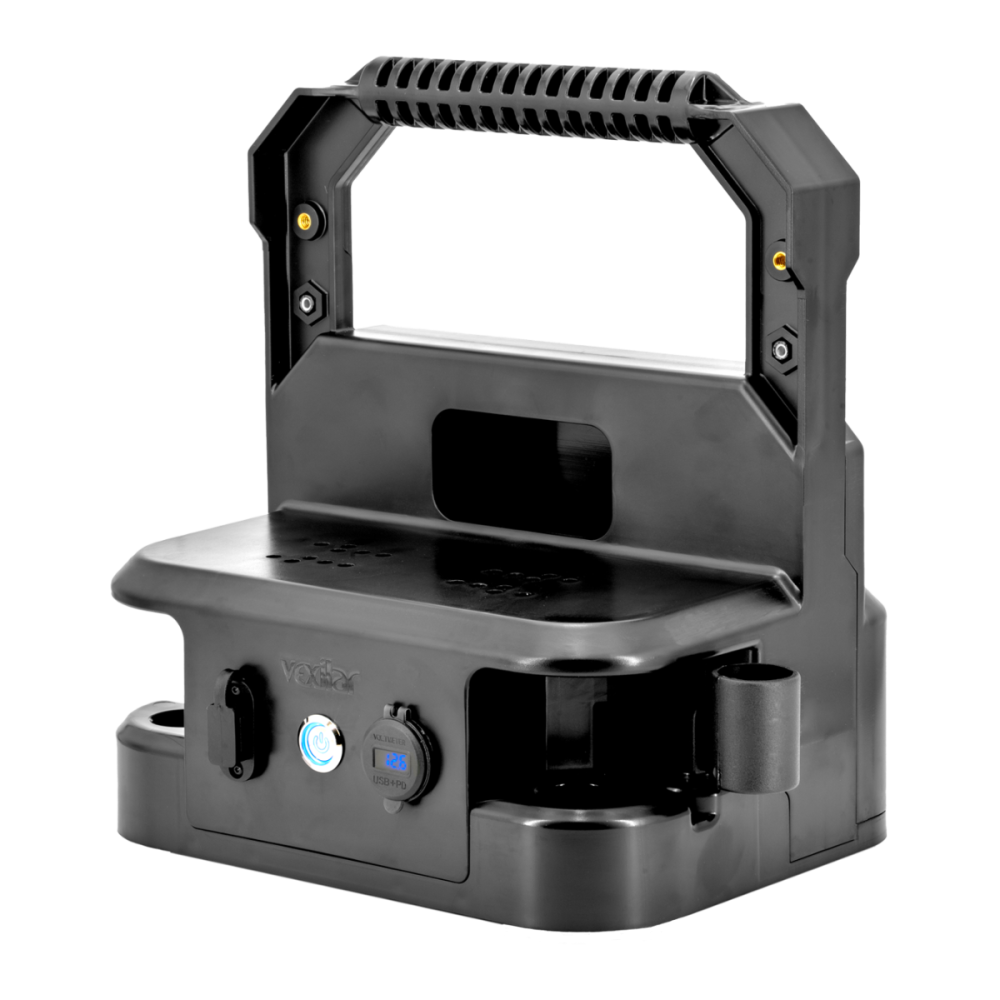

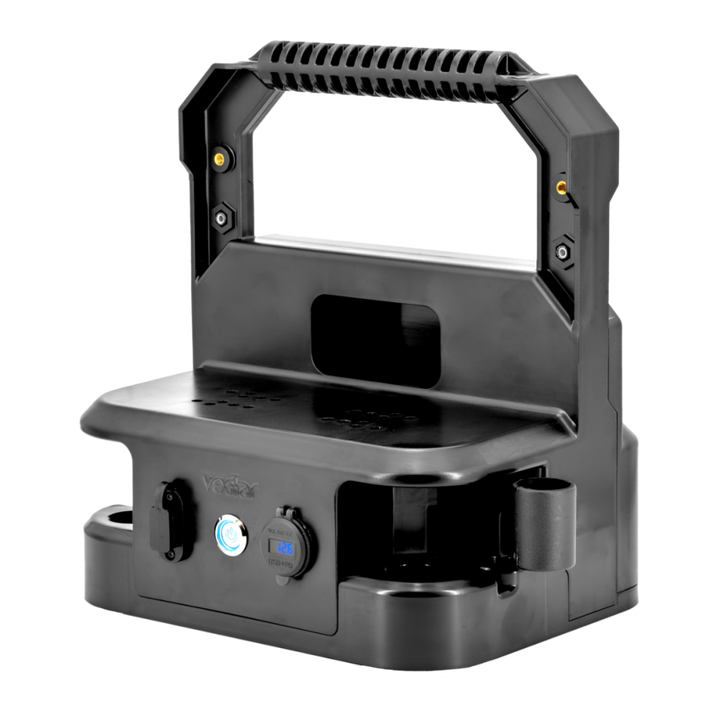

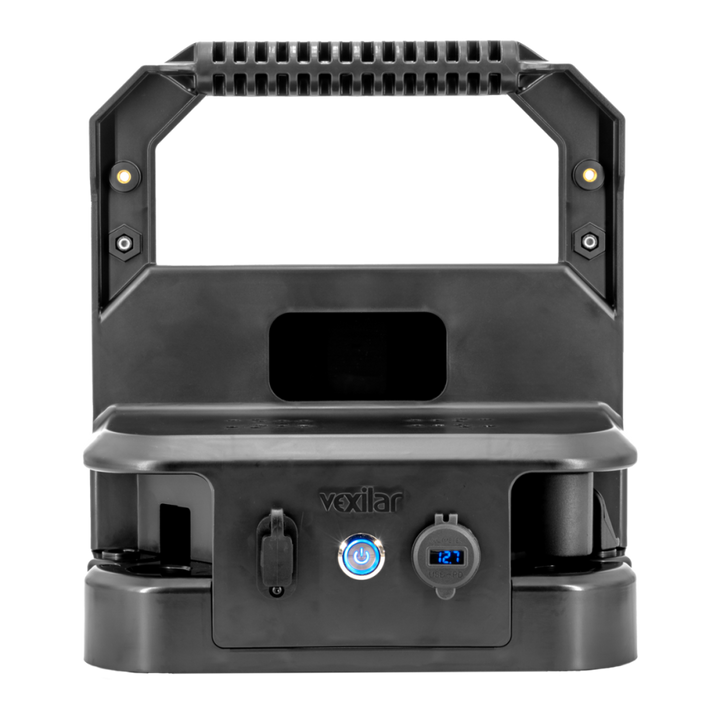

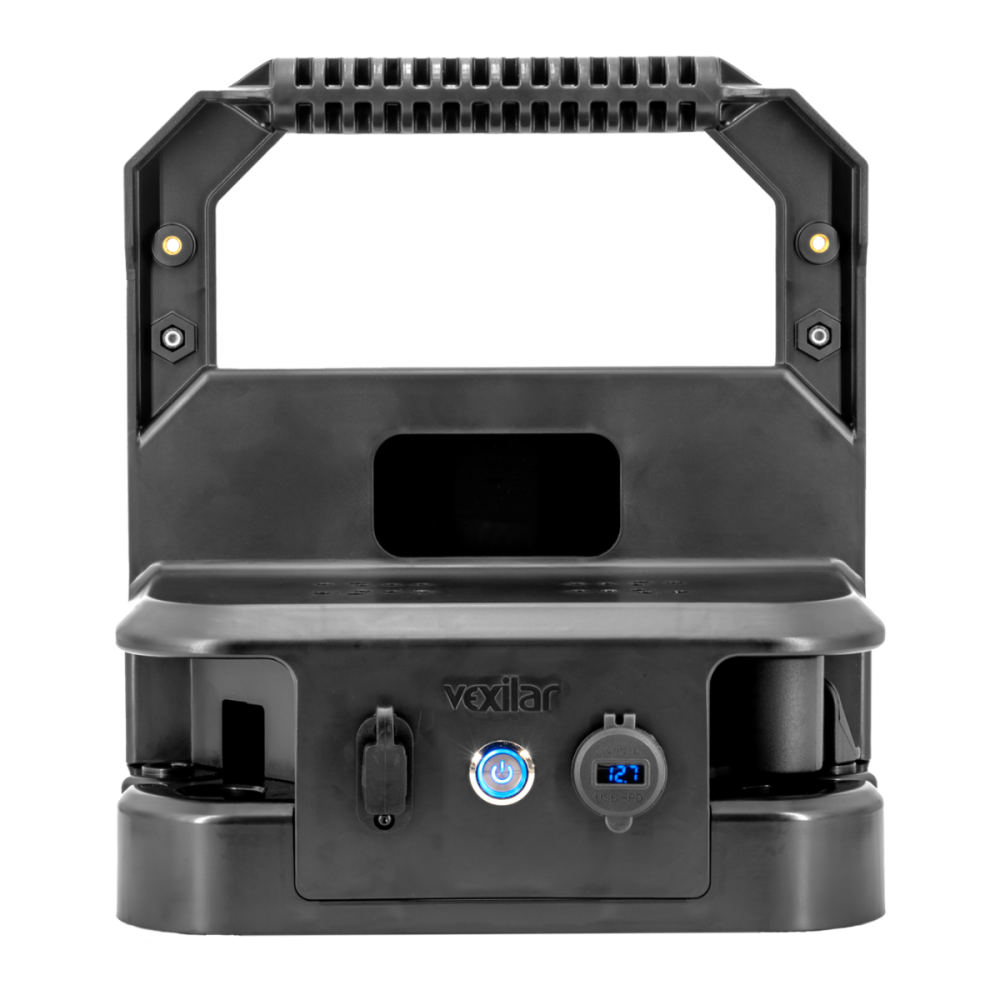

The front of the shuttle has two USB-C ports, one USB-A port, and an easy-to-read digital voltage meter. A backlit master power button, ergonomic handle, and dual 1/4-20 accessory mounts ensure smooth operation on the ice. The shuttle also includes two Vexilar accessory ports, mounting holes for industry-standard gimbal brackets, and an adjustable rod holder—everything you need for a clean, organized, high-performance setup.

Features

• Shuttle dimensions:
  • 12" W x 13 1/2" H x 9" D

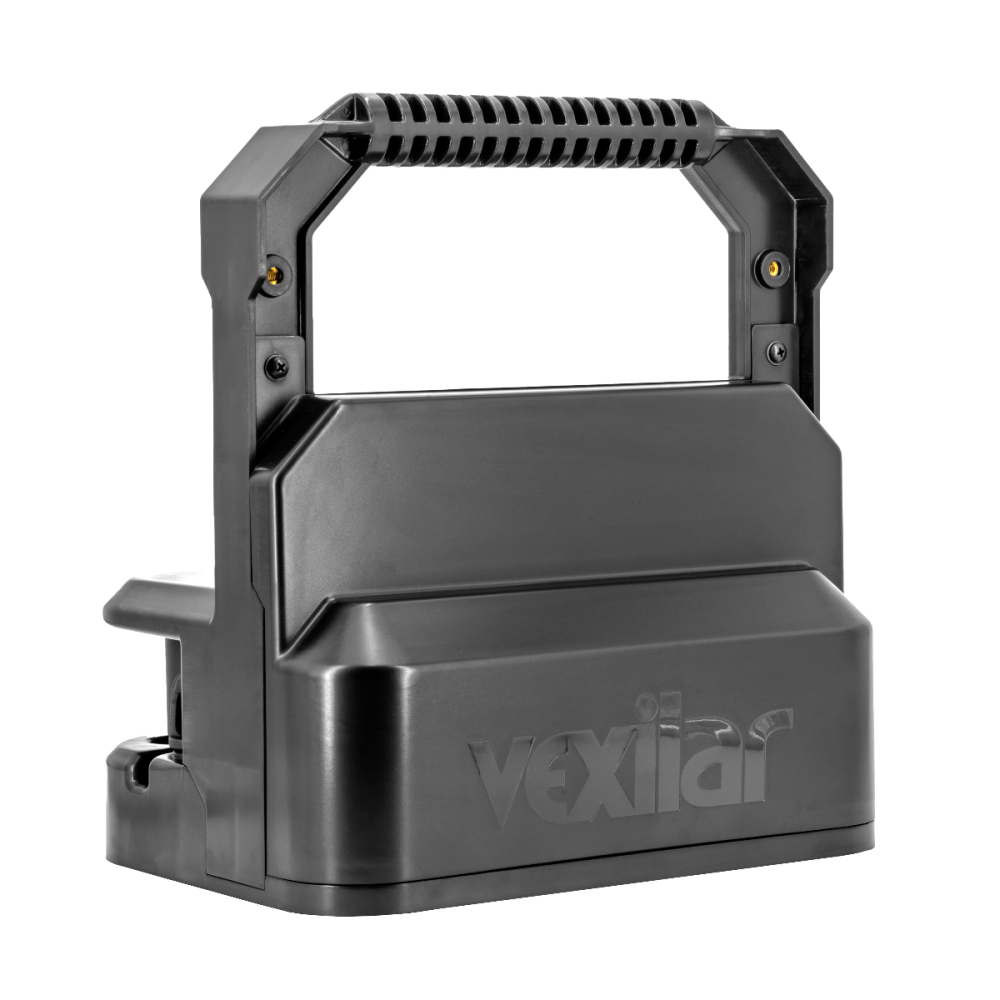

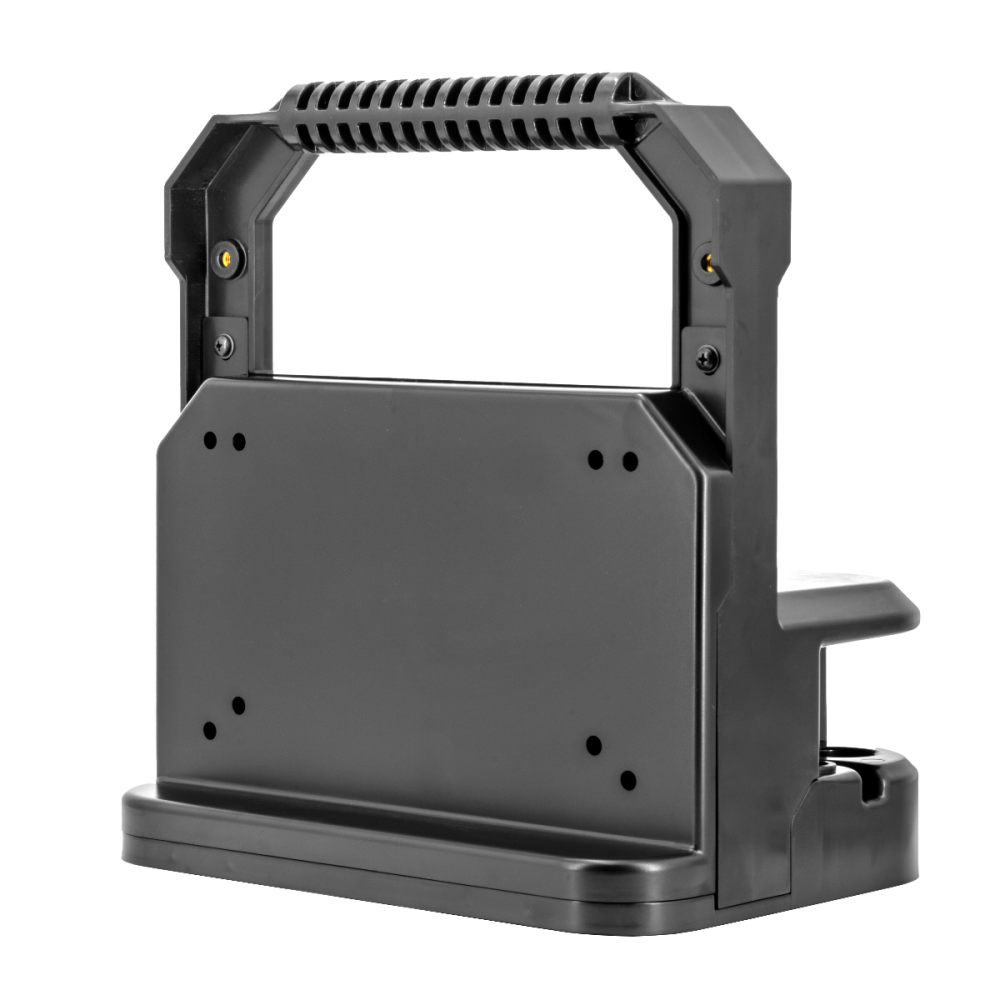

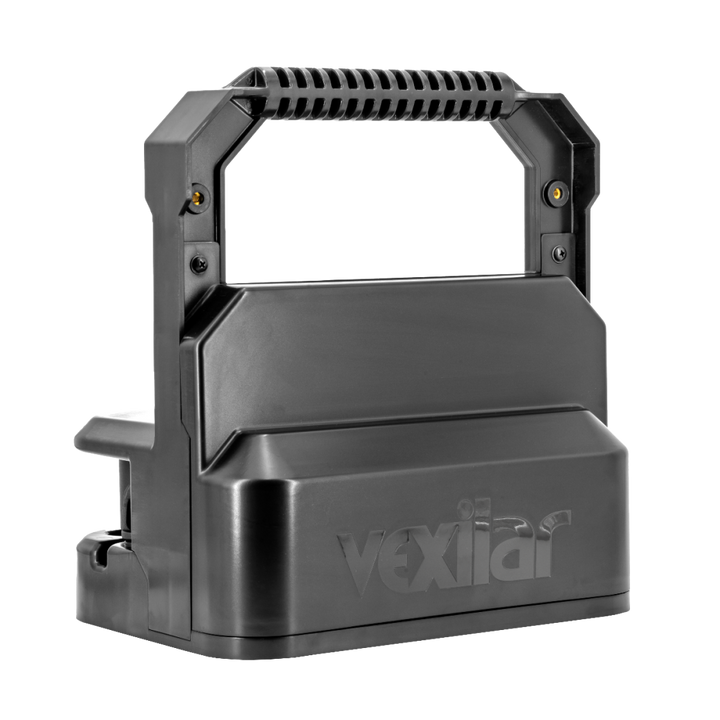

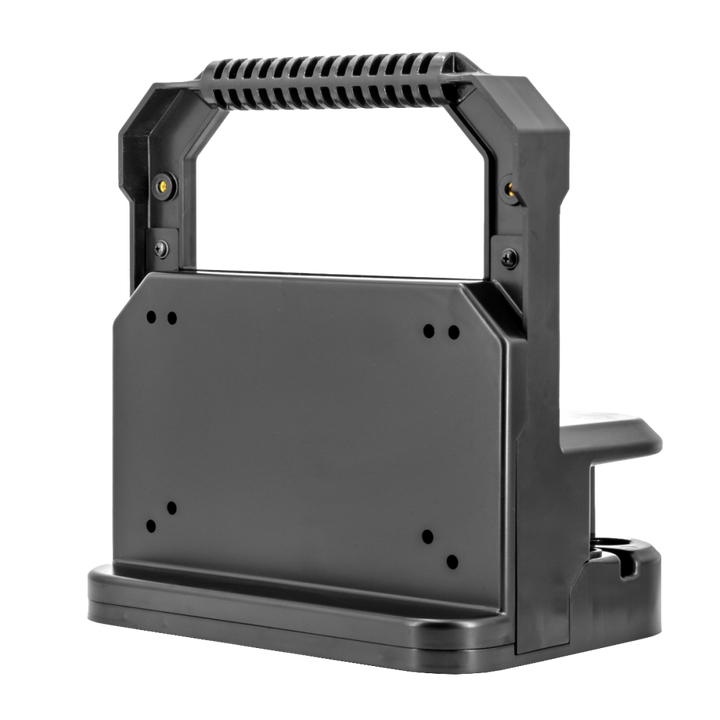

• 2 rear panel options
• Standard SAE charging port
• Digital voltage meter
• Two 1/4 - 20 accessory mounts
• Mounting holes for industry standard gimbal brackets
• Two Vexilar accessory ports
• Adjustable rod holder
• Quick-connect plug
• Two USB-C and one USB-A accessory charging ports
• Backlit master power button
• Enclosed battery compartment
  • Width: 6"
  • Height: 4 5/8" (taller batteries can be laid on their side)
  • Depth with Black Box: 5 1/2"
  • Depth without Black Box: 7"
• Hook and loop straps
• Terminal blocks
• Integrated feet


Approx. weight: 4 lbs.

Made in the USA

Battery and charger not included
